If you've spent time around hunters lately, you've probably heard the term "thermal riflescope." But what does it actually do? How is it different from night vision? And how do features like an integrated laser rangefinder and ballistic calculator change the way you hunt?

This article explains the technology behind thermal imaging and looks at how the Falcon Medusa M4L — a thermal riflescope with a built-in laser rangefinder — applies these principles in a practical, field-ready package.

🔬 The Basics: How Thermal Imaging Works

Thermal imaging devices don't "see" light the way our eyes do. Instead, they detect infrared radiation — heat, essentially. Every object with a temperature above absolute zero emits infrared energy. The warmer something is, the more it emits.

A thermal sensor (called a microbolometer) captures this radiation and converts it into an electrical signal. That signal gets processed and displayed as an image, where warmer objects appear brighter or in contrasting colours depending on the palette you select.

This is fundamentally different from night vision. Night vision devices amplify ambient light — moonlight, starlight — and won't work in complete darkness without an infrared illuminator. Thermal imaging works regardless of light levels: total darkness, bright daylight, fog, or light smoke. It relies solely on heat signatures.

📐 Key Specifications and What They Mean

When you look at a thermal scope's spec sheet, the numbers tell you how it will perform in the field. Here's what the Medusa M4L's specifications actually mean.

Sensor Resolution: 256 × 192

This is the number of pixels on the thermal detector. Higher resolution generally means a sharper image. But sensor quality — pixel pitch and NETD — also plays a big role. 256×192 is common in mid-range thermal optics, offering a good balance between detail and cost.

Pixel Pitch: 12μm

Pixel pitch is the distance between individual pixels on the sensor. Smaller pixels (like 12μm) allow for higher resolution in a smaller package, which helps keep the scope compact without sacrificing image quality.

NETD: ≤30mK

NETD stands for Noise Equivalent Temperature Difference. It measures the sensor's sensitivity — how small a temperature difference it can detect. Lower numbers mean better sensitivity. ≤30mK is considered very good. It means the scope can distinguish objects with very subtle temperature variations from their background.

Objective Lens: 19mm / 25mm

The lens focuses infrared radiation onto the sensor. A larger lens (25mm) gathers more radiation, enabling longer detection ranges — in this case, over 1,300 metres (about 1,420 yards). The 19mm option gives you a wider field of view (9.2° × 7°) for closer-range scanning.

Display: 1024 × 768 OLED

Once the thermal image is processed, it's shown on an internal screen. OLED technology provides high contrast and fast refresh rates — important for tracking moving targets. 1024×768 resolution keeps the image sharp and detailed.

🎯 Laser Rangefinder Integration

A thermal scope tells you where the target is, but not how far away it is — at least, not without extra tools. Traditionally, hunters carry a separate laser rangefinder, range the target, then go back to the scope to aim. That takes time and can alert game to your presence.

The M4L integrates a 1,000-metre laser rangefinder directly into the optical path. Press a button, and it sends out a laser pulse, measures the time until reflection, and calculates the distance. That number appears in your field of view — no head movement, no extra device.

From a technical standpoint, this requires precise alignment between the laser emitter and the optical axis, plus sophisticated timing circuitry. The result is a streamlined workflow: spot, range, aim, shoot.

🧠 Smart Ballistic Calculation

Knowing the distance is only part of the equation. A bullet fired from a rifle follows a curved trajectory, dropping as it travels. Wind can push it sideways. The farther the target, the more these effects matter.

The M4L's smart ballistic calculator uses the measured range, along with stored data about your rifle and ammunition, to generate an on-screen aiming point. That point accounts for bullet drop and drift. You can store up to ten rifle profiles, each containing information like calibre, bullet weight, muzzle velocity, and ballistic coefficient.

When you range a target, the system calculates the required holdover and displays a correction — either as a new aiming point or an adjusted reticle position. This isn't guesswork; it's applied physics in real time.

🔋 Power and Durability

Field use places demands on any electronic device. The M4L runs on two 18650 lithium-ion batteries — a common format in the hunting world. Runtime is rated at 5 hours of continuous use, and you can extend it by connecting an external power source via USB-C.

Recoil resistance matters, too. A riflescope has to withstand repeated shocks from firing. The M4L is tested to 10,000J — equivalent to heavy magnum calibres — and features all-metal construction to maintain zero over time.

IP67 waterproofing means it's protected against dust and can be immersed in water up to one metre for 30 minutes. In practical terms: rain, snow, river crossings, and wet conditions won't stop it.

🌡️ Operating Temperature and Environmental Adaptability

Thermal sensors are sensitive to temperature extremes. The M4L is rated for operation from –20°C to +50°C (–4°F to 122°F). That covers most hunting scenarios, from winter nights in Europe to summer hunts in warmer climates.

Cold start time is 7 seconds — the time from power-on to a usable image. Power-saver mode wakes just as fast, so the scope is ready when you need it.

🧰 What's in the Box

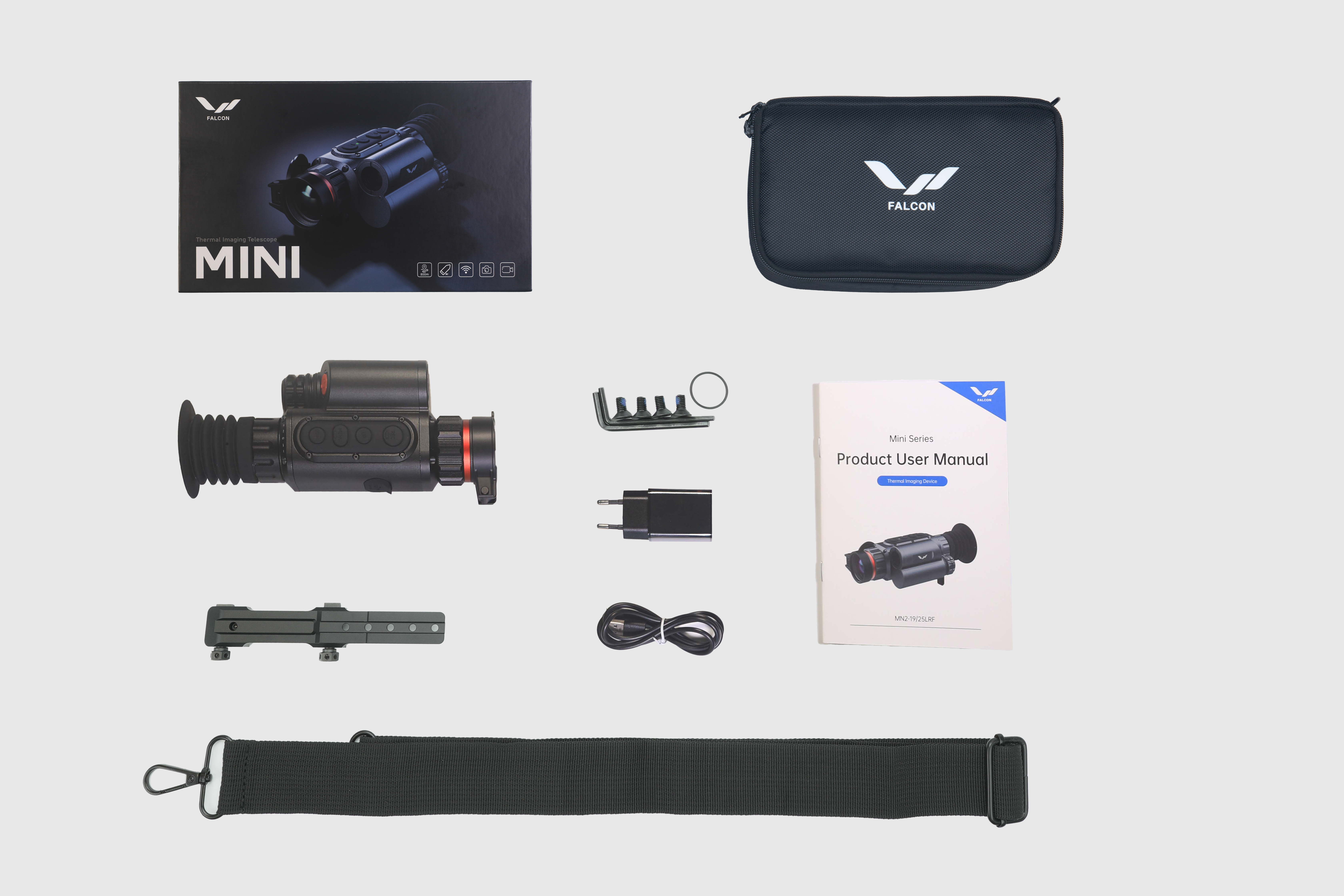

A thermal riflescope is a system, not just the optic itself. The M4L ships with:

• Zippered carry bag

• Product manual

• Picatinny mount and installation tools

• Charger plug and USB-C cable

• Two 18650 batteries and an external charger

This lets you start using the scope right away, without needing to buy extra parts.

📊 Thermal vs. Night Vision: A Quick Comparison

Neither is inherently better — they serve different purposes. Thermal excels at detecting warm-blooded game in darkness or heavy cover. Night vision can provide more visual detail when conditions allow. Some hunters carry both, depending on the terrain and target species.

🔭 Practical Applications in Hunting

How does this translate to the field?

• Wild boar at night – Boar are nocturnal and often move through dense cover. Thermal reveals their heat signature even when they're stationary and partially hidden.

• Coyote control – Predators often freeze when they sense danger. A thermal scope shows them clearly against cool backgrounds.

• Spotting wounded game – A downed animal's heat signature can be visible long after it would otherwise be lost in brush.

In each case, the combination of thermal detection, laser rangefinding, and ballistic calculation reduces variables and lets you focus on the shot.

🔍 Summary

The Falcon Medusa M4L brings together several established technologies — thermal imaging, laser rangefinding, and ballistic computation — in a single device. Its specifications reflect current standards in the industry, with attention to sensitivity, display quality, and field durability.

For hunters interested in extending their effective hours and improving shot placement in low-light conditions, understanding how these tools work is the first step. The M4L is one example of how manufacturers are integrating multiple functions to reduce equipment load and simplify the shooting process.

For complete technical specifications and product information: www.falconoptic.com

This article is for informational purposes only. Always follow local hunting laws and regulations.
